Description

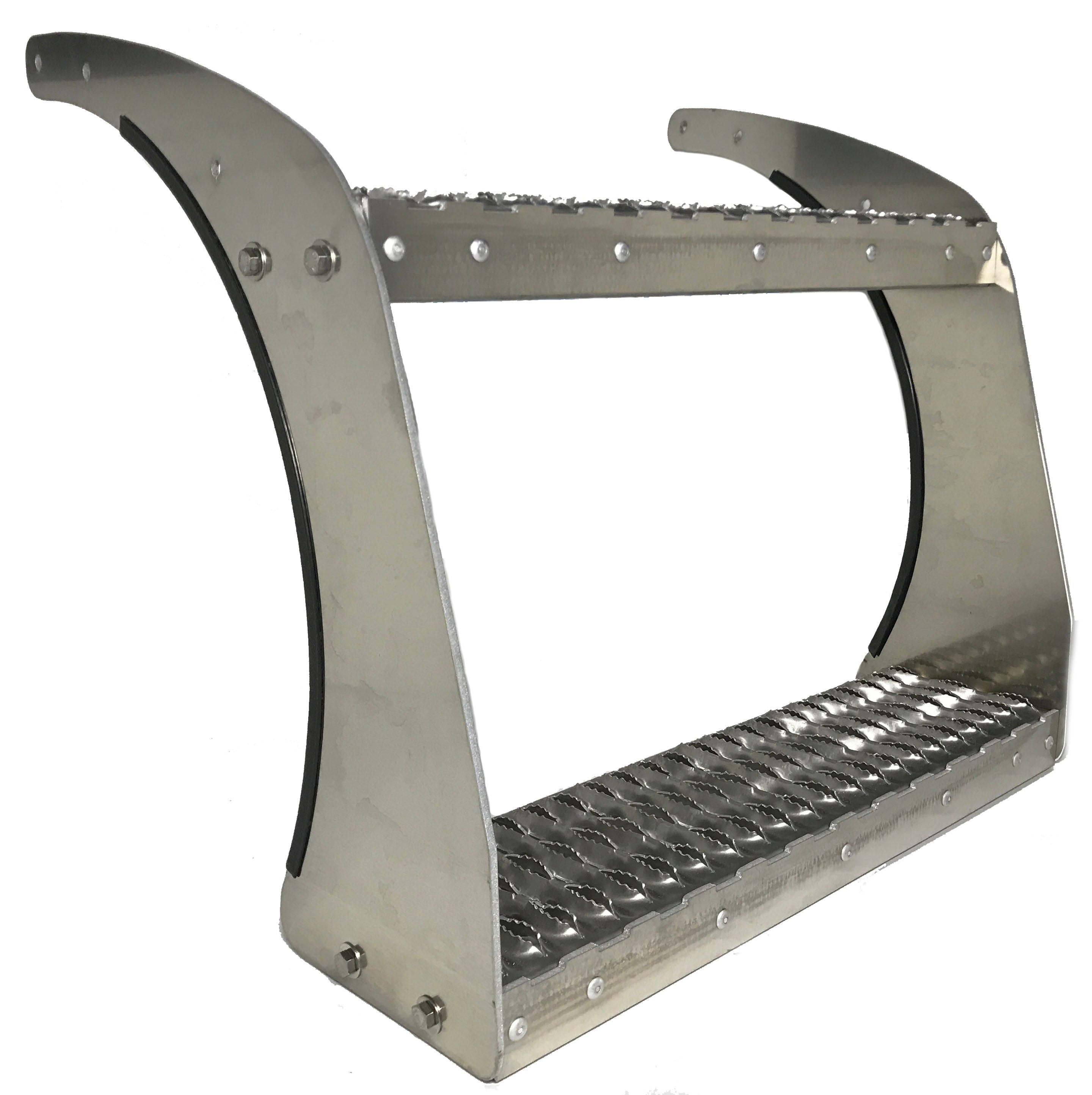

ALUMINUM REPLACEMENT STEPS AND BRACKETS FOR PETERBILT FUEL TANKS
XL - EXTRA LONG (OVER 42") STEPS - HEAVY DUTY
Kit includes: 2 side support brackets, 2 pieces trim, 1- 4-3/4" wide (top) step, 1- 7" wide (bottom) step, and stainless steel hardware
- Choose from lengths listed below. For steps shorter than 42", purchase this kit.
- Fits all Peterbilt models and years (just select correct size)
- MADE IN USA WITH AMERICAN-MADE MATERIALS
Steps
- Includes 3/16" aluminum plate riveted to front edge of step for greater strength - this is required on all steps longer than 42"
- Heavy duty riveted end plates - more durable than welded of folded ends; distributes weight and allows just enough flex
- Direct replacement bolt-on.
Support Brackets
- Laser-cut from 3/16" 5052 Aluminum Plate, same as the originals
- All factory holes make for simple install. No drilling required!
- Trim-Lok heavy duty vinyl trim included for tank protection
- Clean mill finish can be easily sanded/polished.
- We strongly recommend the optional reinforcement braces.
REINFORCEMENT BRACES --- Optional add-on (shown in photos of HD kit); stiffen side brackets and increase overall durability of the step assembly. Also available to purchase separately.
MOUNTING HARDWARE --- Optional add-on; additional set of stainless steel hardware to bolt the step kit to the tank hangers. The hardware to assemble the step kit is included with every kit.
Select length you need, or closest to it (measure length of step only, not including the side brackets). Price is the same for any length.
2-Day Air Express shipping exception: kits over 47-1/4" (1200mm) can ONLY be shipped ground, NOT air.
PETERBILT Fuel Tank Step Kit - XL
$530.00
